Overview
The ThinkPad P1 Gen 1 combines workstation-grade performance with the portability of an ultrabook. Built with an Intel Xeon E-2276M processor and NVIDIA Quadro T2000 graphics, it’s designed for engineers, architects, and content creators who need exceptional speed and reliability in 3D design, CAD, and rendering applications.
With its 15.6-inch 4K UHD IPS touchscreen, it provides vivid color accuracy, multitouch input, and precision display calibration — all within a chassis under 18.4mm thick.
Technical Specifications
| Specification | Details |
|---|---|
| Processor | Intel Xeon E-2276M (6 Cores / 12 Threads, 2.8GHz base, up to 4.7GHz Turbo, 12MB Cache) |
| Graphics | NVIDIA Quadro T2000 (4GB GDDR5 dedicated VRAM) |
| Display | 15.6″ 4K UHD (3840 × 2160) IPS, Touchscreen, 100% AdobeRGB, 400 nits |
| Memory (RAM) | 16GB DDR4 2666MHz ECC (expandable up to 64GB, 2 slots) |
| Storage | 512GB NVMe PCIe SSD (supports dual M.2 slots, RAID capable) |
| Operating System Compatibility | Windows 10 Pro / Windows 11 Pro / Linux (certified) |

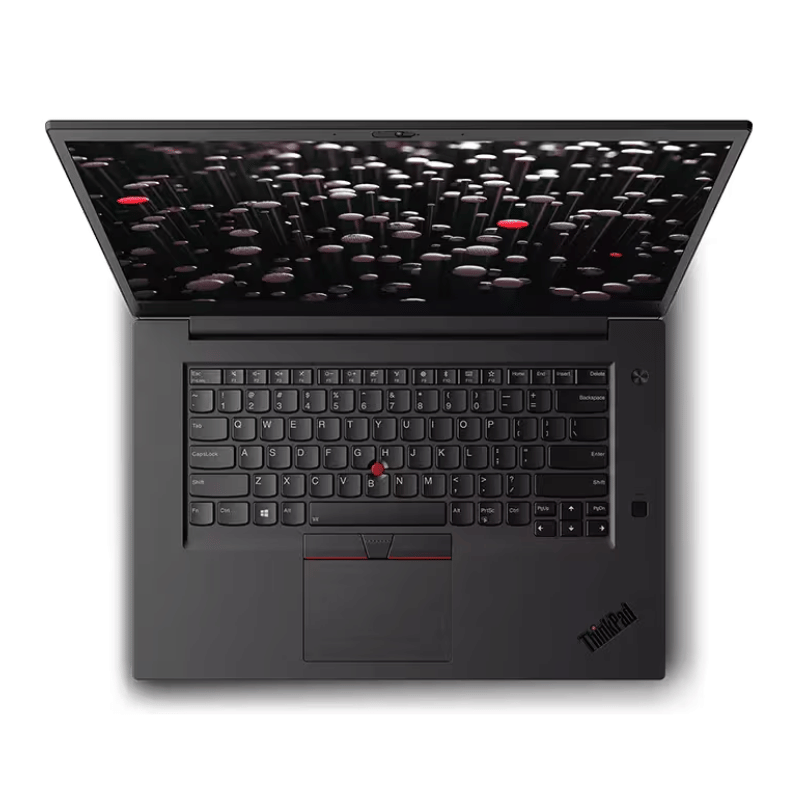

| Keyboard | Backlit, spill-resistant ThinkPad keyboard with precision touchpad |
| Audio | Dolby Atmos® speaker system, dual far-field microphones |
| Camera | 720p HD webcam with ThinkShutter privacy cover |
| Connectivity | Intel Dual-Band Wi-Fi 6 (802.11ax), Bluetooth 5.0 |

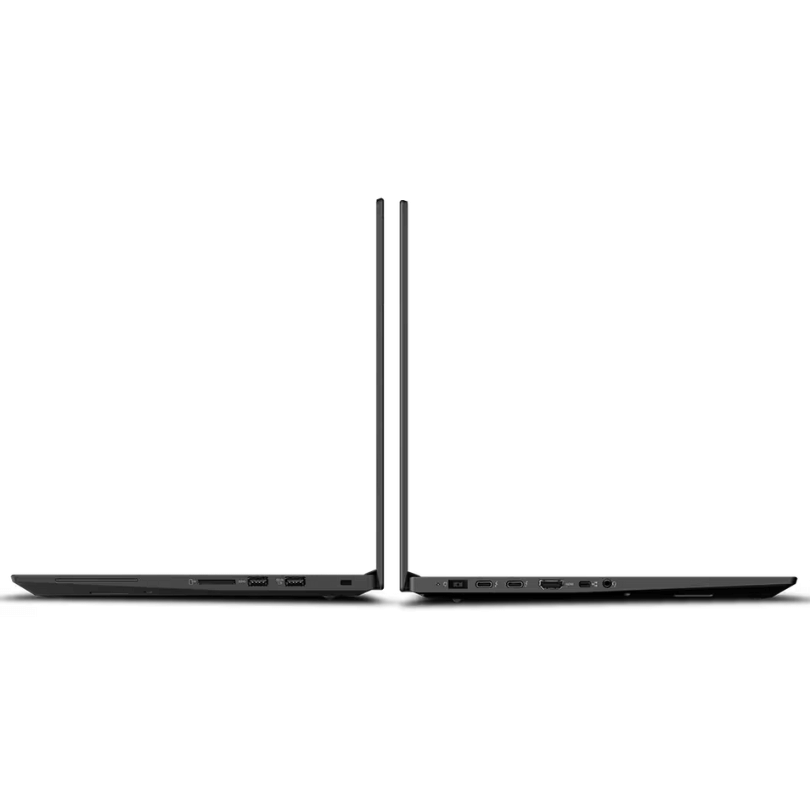

| Ports | 2 × Thunderbolt 3, 2 × USB 3.1 Gen 1, HDMI 2.0, Audio combo jack, RJ-45 via adapter, SD card reader |
| Security | dTPM 2.0, Fingerprint Reader, IR Camera (optional), Kensington Lock Slot |
| Dimensions | 361.8 × 245.7 × 18.4 mm |
| Weight | ≈ 1.7 kg |

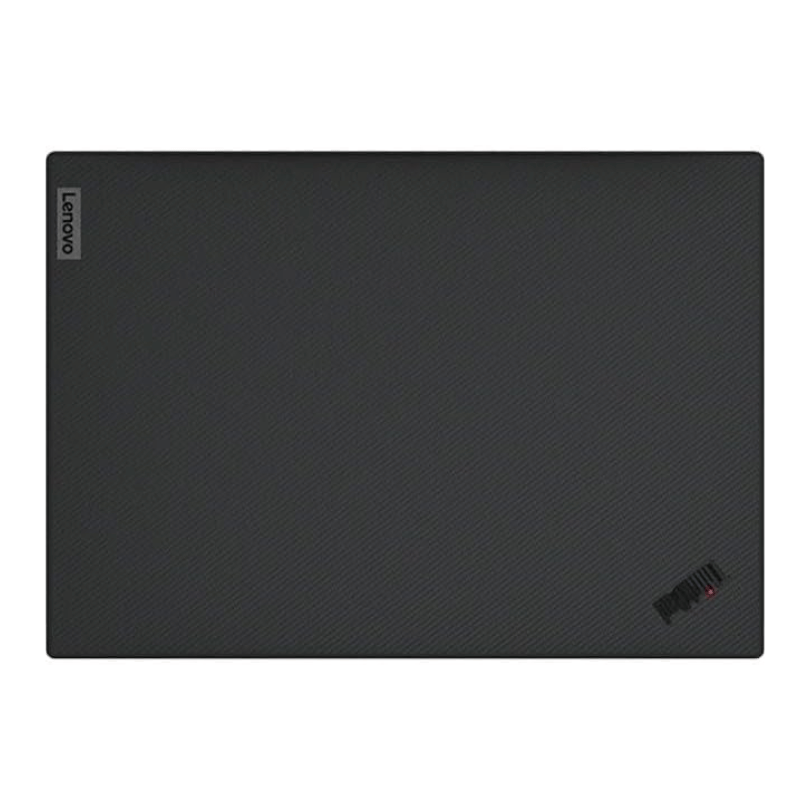

| Chassis | Carbon-fiber hybrid lid, magnesium alloy body |
| Power Supply | 135W or 170W AC Adapter |
| Battery | 80Wh Lithium-Polymer (up to 13 hours depending on use) |
Key Features
-
⚙️ Workstation-Class Power: The Intel Xeon E-2276M with 6 cores and 12 threads ensures stable, high-speed performance for rendering, simulation, and compilation.
-
🎨 Professional-Grade Graphics: NVIDIA Quadro T2000 with 4GB GDDR5 delivers certified performance for CAD, 3D modeling, and GPU-accelerated workflows.
-
💻 Ultra-High-Resolution Display: 15.6″ 4K UHD IPS touchscreen supports multitouch input with outstanding color precision (100% AdobeRGB).
-
🧠 ECC Memory Support: Error-Correcting Code (ECC) RAM ensures data integrity during complex computations and rendering.
-
🧊 Slim, Durable Design: Weighing just 1.7kg, the ThinkPad P1 combines MIL-STD-810G durability with a carbon-fiber and magnesium alloy build.
-
🔋 All-Day Productivity: Energy-efficient components and an 80Wh battery deliver extended runtime for professionals on the move.
-
🔐 Advanced Security: Features include dTPM 2.0 chip, fingerprint reader, ThinkShutter camera cover, and optional IR facial recognition.
